ENC Series blower enclosures are full featured solutions for housing JetAir high-speed centrifugal blowers. ENC Series integrate blower, AC and DC control panels, inlet air filtration, and operator controls into a free-standing enclosure placed next to production lines.
ADVANTAGES
▪ Integrate blower and controls into a single, easily-installed solution
▪ Provide environmental protection for blowers
▪ Provide maximum sound attenuation
▪ Take up minimal line space
Construction
▪ Washdown Stainless Steel 304
▪ 100% access through lift-off door
▪ Threaded levelers provide +/- 5″ adjustment
▪ Welded frame and sloped roof
▪ Outboard inlet air filter for easy maintenance
Controls
▪ Variable Frequency Drive
▪ Mushroom E-stop
▪ On/Off selector
Power Requirements
▪ 460VAC, Three Phase, 20HP [15kW]
Sound Rating
▪ 89dBA
Compatible Blowers
▪ JET-1
Optional Features
▪ Sound Attenuation Kit – 81dBA
Construction
▪ Washdown Stainless Steel 304
▪ 100% access through hinged, gasketed doors
▪ Threaded levelers provide +/- 5″ adjustment
▪ Welded, smooth-ground seams and sloped roof
▪ Separate compartment for blower and controls
▪ Outboard inlet air filter for easy maintenance
Controls
▪ Complete AC and DC panels
▪ Variable frequency drive
▪ LOTO rotary disconnect
▪ Mushroom E-stop
▪ On/Off push button
▪ Reset push button
▪ Status indicator
▪ HIM keypad interface
▪ UL508A rating
Power Requirements
▪ 460VAC, Three Phase, 20HP [15kW]
Sound Rating
▪ 85dBA
Compatible Blowers
▪ JET-1, JET-2G, JET-2X, JET-3
Optional Features
▪ NEMA4x fan upgrade kit
▪ Integrated AC cooling
▪ Stacklight
Construction
▪ Washdown Stainless Steel 304
▪ 100% access through hinged, gasketed doors
▪ Threaded levelers provide +/- 5″ adjustment
▪ Welded, smooth-ground seams and sloped roof
▪ Separate compartment for blower and controls
▪ Outboard inlet air filter and silencer for easy
maintenance
Controls
▪ Complete AC and DC panels
▪ Variable frequency drive
▪ LOTO flanged disconnect
▪ Mushroom E-stop
▪ On/Off push button
▪ Reset push button
▪ Status indicator
▪ HIM keypad interface
▪ UL508A rating
Power Requirements
▪ 460VAC, Three Phase, 40HP [30kW]
Sound Rating
▪ 85dBA
Compatible Blowers
▪ JET-5
Optional Features
▪ Integrated AC cooling
▪ Stacklight
Construction
▪ Dual blower housing
▪ Washdown Stainless Steel 304
▪ 100% access through lift-off doors
▪ Threaded levelers provide +/- 5″ adjustment
▪ Welded frame and sloped roof
▪ Integrated NEMA4x/IP66 Contol Panel Enclosures
Controls
▪ Complete AC and DC panels
▪ Variable frequency drive
▪ LOTO rotary disconnect
▪ Mushroom E-stop
▪ On/Off push button
▪ Reset push button
▪ Status indicator
▪ HIM keypad interface
▪ UL508A rating
Power Requirements
▪ 460VAC, Three Phase, 40HP-80HP [30-60kW]
Sound Rating
▪ 79dBA
Compatible Blowers
▪ JET-1, JET-2G, JET-2X, JET-3, JET-5
Optional Features
▪ NEMA4x fan upgrade kit
▪ Integrated AC cooling
▪ Stacklight

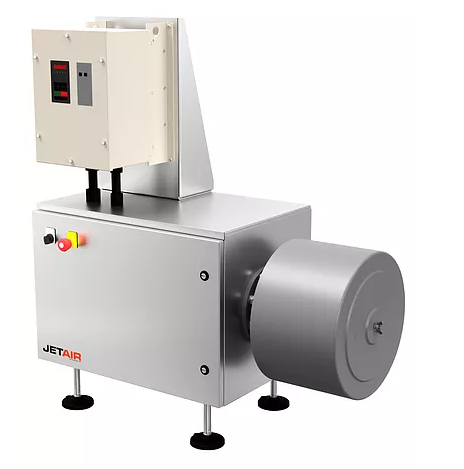

JetAir Designed this blower enclosure to be Safe and Easy to use. ‘Simplicity of Use’ was our guiding design cue. The EMV protects the blower and also protects the operator. With Simplified controls; anyone can operate your highspeed blower, This enclosure is designed to house any of our 10 or 20 Hp blowers and keep the decibel level around 85 dBA.
Construction
▪ Washdown Stainless Steel 304
▪ 100% access through hinged, gasketed doors
▪ Threaded levelers provide +/- 8″ adjustment
▪ Outboard inlet air filter for easy maintenance
Controls
▪ IP66 NEMA 4X Variable Frequency Drive
▪ Mushroom E-stop
▪ On/Off selector
Power Requirements
▪ 3 phase 220 and 480 volt supply power
Sound Rating
▪ 85dBA
Compatible Blowers
▪ JET-1, JET-2G, JET-2X, JET-3
Optional Features
▪ Filter Silencer
